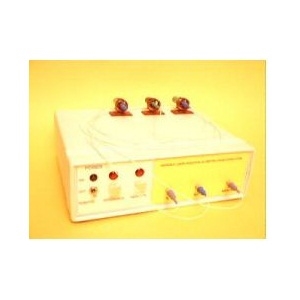

ODB-6

Superluminescent Diode by WT&T
4 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to WT&T.

The ODB-6 from WT&T is a Superluminescent Diode with Wavelength 1.28 to 1.68 µm. More details for ODB-6 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ODB-6
  • Manufacturer
    WT&T
  • Description
    Compact module for optical return loss measurement

Fiber Parameters

  • Fiber Mode
    Single Mode
  • Fiber Type
    9/125/900 µm
  • Fiber Core Diameter
    9 µm
  • Cladding Diameter
    125 um
  • Fiber Jacket
    900 um

General Parameters

  • Type
    Fiber-Coupled SLED
  • Wavelength
    1.28 to 1.68 µm
  • Return Loss
    45 to 65 dB
  • Package Type
    Coaxial Pigtailed, Module
  • Package
    Module
  • Note
    input Power: 20 to 26 dBm, PDL: 0.02 to 0.15 dB, No. of Input/Outputs: 3 to 4

Temperature

  • Operating Temperature
    1 to 45 Degree C

Physical Properties

  • Dimension
    200 × 180 × 50 mm

Connections & Interface

  • Connector
    FC/APC

Technical Documents
Click to view more product details on manufacturer's website
