PHY1090

Transimpedance Amplifier by Maxim Integrated

Note: Your Quotation Request will be directed to Maxim Integrated.

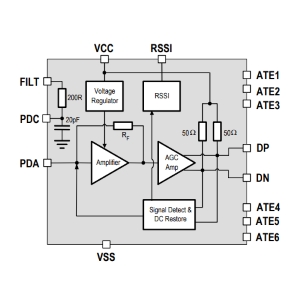

The PHY1090 from Maxim Integrated is a Linear Transimpedance Amplifier that has a transimpedance of 2 kOhm. It has an automatic gain control and integrated PIN filter capacitor & resistor. This amplifier can handle an input current of up to 2 mAp-p and has input-referred noise of up to 1100 nArms. It has a return loss of 20dB and a total harmonic distortion of 2-6.5%. This amplifier produces OMA-based RSSI output current with an RSSI accuracy of 30% and has an RSSI response time of 30 ms. It requires a DC supply of 3.3 V. This amplifier is available in a die package that measures 1.169 x 0.929 mm and is ideal for EDC-enabled fiber optic receivers up to 10 Gbps, OC192 telecom systems, and IEEE 10GBASE-LRM receiver systems.

Product Specifications

Product Details

  • Part Number
    PHY1090
  • Manufacturer
    Maxim Integrated
  • Description
    10 Gbps Linear Transimpedance Amplifier for Telecom Systems

Applications

  • Applications
    EDC-enabled Receivers ,IEEE 10GBASE-LRM ,OC-192

General Parameters

  • Power Supply Current
    45 to 68 mA
  • Data Rate
    6 to 10 Gbps
  • Transimpedance
    2 kOhms
  • Power Supply Voltage
    2.95 to 3.65 V
  • Bandwidth
    5000 MHz
  • Package Type
    Die
  • Deterministic Jitter
    50 to 100 mUIpp
  • Differential Output Swing
    240 to 360 mVpp
  • Input Bias Voltage
    1 V
  • Input Overload Current
    2 mApp
  • Input Referred Noise
    1100 nArms
  • Low Frequency Cutoff
    15 KHz
  • Optical Return Loss
    8 to 20 dB
  • Output Resistance
    80 to 120 Ohms
  • Rejection Ratio
    6 to 14 dB
  • Response Time
    40 ms
  • Package
    WAFER UNSAWN/1

Temperature

  • Operating Temperature display
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 150 Degree C

Physical Properties

  • Die/Package Size
    1.169 x 0.929 mm
