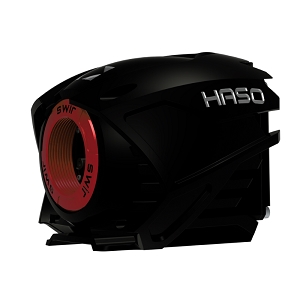

HASO SWIR

Wavefront Sensor by Imagine Optic
13 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Imagine Optic.

The HASO SWIR from Imagine Optic is a Wavefront Sensor with Optical Wavelength 0.9 to 1.7 µm (Calibrated). More details for HASO SWIR can be seen below.

Product Specifications

Product Details

  • Part Number
    HASO SWIR
  • Manufacturer
    Imagine Optic
  • Description
    0.9 to 1.7 µm USB 3.0 SWIR Wavefront Sensor

General Parameters

  • Type
    SWIR
  • Optical Wavelength
    0.9 to 1.7 µm (Calibrated)
  • Wavefront Accuracy
    λ/100 RMS
  • Interface
    USB 3.0, Gigabit Ethernet (GigE)
  • Absolute Accuracy
    λ/100 RMS
  • Acquisition Rate
    150 Hz, 49 Hz
  • Aperture Dimension
    9.3 mm x 7.44 mm
  • Exposure Time
    100 ns to 9 µs
  • Focus Dynamic Range
    ±0.017 m to ± Infinity
  • Microlens Number
    40 x 32
  • Operating System
    Windows 10
  • Power
    0.3 pW
  • Power Consumption
    <5 W
  • Repeatability
    λ/200 RMS
  • ROC
    300 m
  • Spatial Sampling
    232.5 µm
  • Tilt Dynamic Range
    >±3 Degree
  • Note
    External trigger TTL signal

Physical Properties

  • Dimensions
    75 x 78 x 63 mm3
  • Weight
    250 g

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C

Applications

  • Application
    Optical Metrology, Microscopy, and Laser Diagnostics
