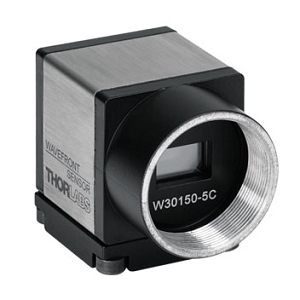

WFS31-5C

Wavefront Sensor by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The WFS31-5C from Thorlabs Inc is a Wavefront Sensor with Optical Wavelength 300 to 1100 nm, Frame Rate Upto 76 fps. More details for WFS31-5C can be seen below.

Product Specifications

Product Details

  • Part Number
    WFS31-5C
  • Manufacturer
    Thorlabs Inc
  • Description
    300 to 1100 nm USB 3.0 Upto 76 fps General Purpose Shack-Hartmann Wavefront Sensor

General Parameters

  • Type
    General Purpose
  • Technology
    Shack-Hartmann
  • Optical Wavelength
    300 to 1100 nm
  • Wavefront Accuracy
    λ/25 rms
  • Frame Rate
    Upto 76 fps
  • Interface
    USB 3.0
  • Aperture Dimension
    11.25 mm x 7.03 mm
  • Aperture Size
    11.5 x 7.5 mm
  • Wavefront Sensitivity
    λ/80 rms
  • Coating
    Chrome Mask
  • Current
    10 mA
  • Exposure Time
    31 µs to 2000 ms
  • Fill Factor
    0.684
  • Focal Length
    4.1 to 5.6 mm
  • Focus Dynamic Range
    >500λ
  • Image Digitization
    8 Bit
  • Lens Shape
    Round, Plano-Convex Spherical
  • Lens Size
    140 µm (dia)
  • Lenslet Grid Type
    Square Grid
  • Lenslet Pitch
    150 µm
  • Optical Input Thread
    Internal C-Mount
  • Pixel Size
    5.86 µm x 5.86 µm
  • Power Consumption
    2.8 W
  • Pulse Width
    100 µs
  • Reflectivity
    <25%
  • Resolution
    1920 x 1200 Pixels
  • Sensor Size
    11.25 x 7.03 mm
  • Sensor Type
    CMOS
  • Slew Rate
    35 V/ms
  • Substrate/Material
    Fused Silica (Quartz)
  • Voltage
    Low Level 0 to 2 V, High Level 5 to 24 V
  • Warm up time
    15 min
  • Wavefront Curvature
    >7.4 mm
  • Note
    Shutter: Global Shutter, Array size: 12 x 12 x 1.2 mm

Physical Properties

  • Dimensions
    35.4 x 29.8 x 47.9 mm (H x W x D)

Environmental Conditions

  • Operating Temperature
    5 to 35 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Applications

  • Application
    Research and Development, Adaptive Optics, Beam Characterization, Quality Control, and Optical Alignment
