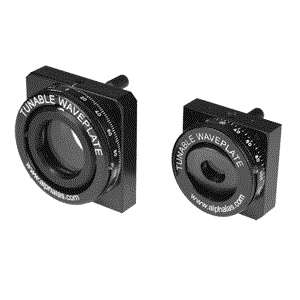

PO-TWP-DW-2/1-12-IR

Waveplate by ALPHALAS
25 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ALPHALAS.

The PO-TWP-DW-2/1-12-IR from ALPHALAS is a Waveplate with Wavelength Range 2000 to 6500 nm, Waveplate Diameter(Inch) 0.4 Inch, Waveplate Diameter(mm) 11 mm(Clear Aperture). More details for PO-TWP-DW-2/1-12-IR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PO-TWP-DW-2/1-12-IR
  • Manufacturer
    ALPHALAS
  • Description
    Tunable True Zero-Order DUAL-WAVELENGTH Phase Retardation Plate

Applications

  • Application
    Frequency Tripling Femtosecond Third Harmonic Generation Differential Polarization Rotation

General Parameters

  • Waveplate Type
    Zero-Order half-wave, full-wave, Tunable waveplates
  • Wavelength Range
    2000 to 6500 nm
  • Retardance
    λ/2 (half-wave), λ(full-wave)
  • Coating Material
    IR
  • Clear Aperture
    11 mm
  • Note
    Broad Bandwidth: typ. 50 nm

Physical Properties

  • Waveplate Diameter(Inch)
    0.4 Inch
  • Waveplate Diameter(mm)
    11 mm(Clear Aperture)
