PO-TWP-MP-25-UV

Waveplate by ALPHALAS
25 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ALPHALAS.

The PO-TWP-MP-25-UV from ALPHALAS is a Waveplate with Wavelength Range 150 to 2000 nm, Waveplate Diameter(Inch) 0.9 Inch, Waveplate Diameter(mm) 24 mm(Clear Aperture). More details for PO-TWP-MP-25-UV can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PO-TWP-MP-25-UV
  • Manufacturer
    ALPHALAS
  • Description

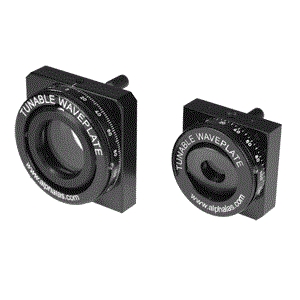

    Tunable True Zero-Order Waveplate with Freely Adjustable Phase Retardation - MULTIPHASE Retardation adjustable from 0 to λ

Applications

  • Application
    Polarization Measurement & Control Laser Research Spectroscopy Nonlinear Optics OPO Femtosecond Lasers

General Parameters

  • Waveplate Type
    Zero-Order Waveplate, Tunable Waveplate
  • Wavelength Range
    150 to 2000 nm
  • Retardance
    0 to λ (0 to full-wave)
  • Coating Material
    UV
  • Clear Aperture
    24 mm
  • Note
    Required Tilt: 3° - 30°

Physical Properties

  • Waveplate Diameter(Inch)
    0.9 Inch
  • Waveplate Diameter(mm)
    24 mm(Clear Aperture)
