FRR2101

Waveplate by Dayoptics, Inc

Note: Your Quotation Request will be directed to Dayoptics, Inc.

The FRR2101 from Dayoptics, Inc is a Waveplate with Wavelength Range 200 to 2000 nm. More details for FRR2101 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FRR2101
  • Manufacturer
    Dayoptics, Inc

General Parameters

  • Waveplate Type
    Fresnal Rhomb Retarders
  • Wavelength Range
    200 to 2000 nm
  • Retardance
    λ/4(quarter-wave)
  • Clear Aperture
    90% of Center Diameter(Waveplate Aperture: 10 x 10 mm)
  • Parallelism
    1 arcsec
  • Substrate/Material
    UV Grade Fused Silica
  • Surface Quality
    20-10 scratch-dig
  • Transmitted Wavefront Error
    Surface flatness: λ/[email protected]

Physical Properties

  • Dimension Tolerance
    +0.0,-0.2 mm
  • Dimensions

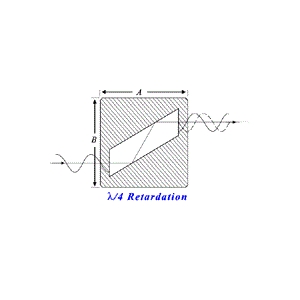

    35 x 40 x 37 mm(A xB x H)
