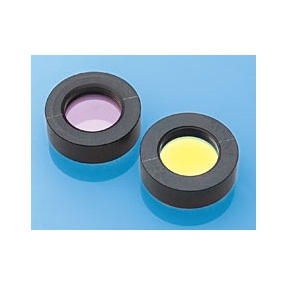

48-501

Waveplate by Edmund Optics
223 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edmund Optics.

The 48-501 from Edmund Optics is a Waveplate with Wavelength Range 1200 to 1650 nm, Waveplate Thickness 6 mm, Waveplate Diameter(Inch) 1.2 Inch, Waveplate Diameter(mm) 30 mm. More details for 48-501 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    48-501
  • Manufacturer
    Edmund Optics
  • Description
    30mm Dia, 1200-1650nm, λ/4 Achromatic Waveplate

General Parameters

  • Waveplate Type
    Achromatic Waveplate
  • Wavelength Range
    1200 to 1650 nm
  • Retardance
    λ/4(quarter-wave)
  • Waveplate Thickness
    6 mm
  • Construction
    Crystalline
  • Clear Aperture
    23 mm
  • Parallelism
    1 arcmin
  • Reflection(%)
    Ravg <0.5% @ 1200 - 1650 nm
  • Retardance Tolerance
    ±λ/100
  • Substrate/Material
    Crystal Quartz and MgF2
  • Surface Quality
    20-10 scratch-dig
  • Transmitted Wavefront Error
    λ/4 @ 633 nm

Physical Properties

  • Diameter Tolerance
    Housing Tolerance: 0/-0.25 mm
  • Waveplate Thickness Tolerance
    ±0.15 mm
  • Waveplate Diameter(Inch)
    1.2 Inch
  • Waveplate Diameter(mm)
    30 mm

Temperature

  • Temperature Coefficient
    0.002 λ/Degree C
