D R1 R2 - d - λ1/λ2

80 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Meadowlark Optics, Inc..

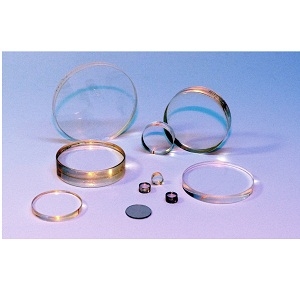

The D R1 R2 - d - λ1/λ2 from Meadowlark Optics, Inc. is a Waveplate with Wavelength Range 488 to 1064 nm, Waveplate Thickness 0.14 to 0.27 Inch(3.6 to 6.9 mm), 3.6 to 6.9 mm, Waveplate Diameter(Inch) 0.5 to 1 Inch, Waveplate Diameter(mm) 12.7 to 25.4 mm. More details for D R1 R2 - d - λ1/λ2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    D R1 R2 - d - λ1/λ2
  • Manufacturer
    Meadowlark Optics, Inc.

General Parameters

  • Waveplate Type
    Dual-Wavelength Retarder
  • Wavelength Range
    488 to 1064 nm
  • Retardance
    λ/4(quarter-wave), λ/2(half-wave)
  • Waveplate Thickness
    0.14 to 0.27 Inch(3.6 to 6.9 mm), 3.6 to 6.9 mm
  • Beam Deviation
    1 arcmin
  • Retardance Tolerance
    λ/100
  • Substrate/Material
    N-BK7
  • Transmitted Wavefront Error
    λ/4 (at 632.8 nm)
  • Note
    R1,R2 = Q for quarter wave, H for half wave

Physical Properties

  • Diameter Tolerance
    +0/-0.010 in
  • Waveplate Diameter(Inch)
    0.5 to 1 Inch
  • Waveplate Diameter(mm)
    12.7 to 25.4 mm
