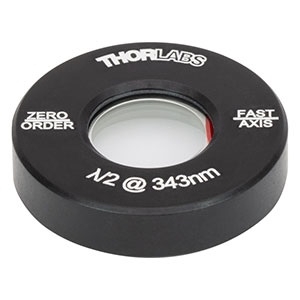

WPH05M-343

Waveplate by Thorlabs Inc
36 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The WPH05M-343 from Thorlabs Inc is a Waveplate with Wavelength Range 343 nm, Waveplate Thickness 1.33 mm, Waveplate Diameter(Inch) 0.5 Inch, Waveplate Diameter(mm) 12.7 mm. More details for WPH05M-343 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    WPH05M-343
  • Manufacturer
    Thorlabs Inc
  • Description
    343 nm Zero-Order Waveplates with 1.33 mm Thickness

Applications

  • Application
    OEM Applications

General Parameters

  • Waveplate Type
    Zero-Order Waveplates
  • Wavelength Range
    343 nm
  • Retardance
    Half-Wave
  • Waveplate Thickness
    1.33 mm
  • Coating Material
    VAR (Visual Anti-Reflection) Thin Film Coating
  • Beam Deviation
    <10 arcsec
  • Clear Aperture
    10 mm
  • Reflection(%)
    <0.25%
  • Retardance Tolerance
    λ/300
  • Substrate/Material
    Crystal Quartz
  • Surface Quality
    20-10 scratch-dig
  • Transmitted Wavefront Error
    λ/8
  • Note
    Mounted Diameter: 25.4 mm

Physical Properties

  • Diameter Tolerance
    ±0.1 mm
  • Waveplate Diameter(Inch)
    0.5 Inch
  • Waveplate Diameter(mm)
    12.7 mm
