WZN1605

Optical Window by Knight Optical (UK) Ltd
217 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Knight Optical (UK) Ltd.

The WZN1605 from Knight Optical (UK) Ltd is a Optical Window with Window Diameter 16 mm, Window Diameter 0.63 Inch, Thickness 0.5 mm, Thickness 0.02 Inch. More details for WZN1605 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    WZN1605
  • Manufacturer
    Knight Optical (UK) Ltd
  • Description

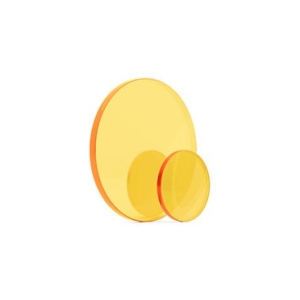

    16 mm Diameter Zinc Selenide Uncoated Standard Window with 0.5 mm Thickness

General Parameters

  • Thickness Tolerance
    ±0.2 mm
  • Window Type
    Zinc Selenide Window, Standard Window
  • Window Shape
    Round
  • Substrate/Material
    Zinc Selenide
  • Coating Material
    Uncoated
  • Surface Quality
    60-40 scratch-dig

Physical Properties

  • Dimensions(mm)
    16 x 0.5 mm (Dia x T)
  • Window Diameter
    16 mm
  • Diameter Tolerance
    +0/-0.2 mm
  • Dimensions(Inch)
    0.63 x 0.02 Inch (Dia x T)
  • Window Diameter
    0.63 Inch
  • Dimension Tolerance
    +0/-0.2, ±0.2 mm
  • Thickness
    0.5 mm
  • Thickness
    0.02 Inch
Click to view more product details on manufacturer's website
