PP-MGF2-25.4-1.0-AR251-AR251

Optical Window by OPTOMAN

Note: Your Quotation Request will be directed to OPTOMAN.

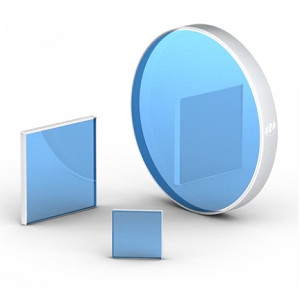

The PP-MGF2-25.4-1.0-AR251-AR251 from OPTOMAN is an Ultrafast Optical Window that operates at a wavelength of 700 nm - 1300 nm. It has a diameter of 25.4 mm and thickness of 1 mm. This magnesium fluoride (MgF2) optical window has a clear aperture above 20 mm and surface quality of 60-40 S-D (scratch-dig) per clear aperture. It has a parallelism of less than 20 arcsec and transmitted wavefront distortion below lambda/8 (at 633 nm). This optical window has an ion beam sputtering coating and a reflective surface with a maximum absorbed reflectance of 0.65% (900 nm - 1100 nm), 1.9% (700 nm - 900 nm) & 1.6% (1100 nm - 1300 nm). It has a group delay dispersion of over 30 fs2 and protective chamfers of 0.2 - 0.4 mm x 45 deg. This optical window is ideal for high-power applications.

Product Specifications

View similar products

Product Details

  • Part Number
    PP-MGF2-25.4-1.0-AR251-AR251
  • Manufacturer
    OPTOMAN
  • Description
    700 nm - 1300 nm, MgF2 Optical Window for High-Power Applications

General Parameters

  • Thickness Tolerance
    ±0.1 mm
  • Transmitted Wavefront Distortion
    λ/8
  • Window Type
    MgF2 Window
  • Window Shape
    Round
  • Window Color
    Visible, Near-Infrared
  • Coating
    S1/S2: R_abs <0.65% @ 900-1100nm, R_abs <1.9% @ 700-900nm, R_abs <1.6% @ 1100-1300nm, R_avg <1.2%@ 700-1300nm
  • Wavelength Range
    700 to 1300 nm
  • Substrate/Material
    MgF2
  • Angle of Incidence
    0 Degree
  • Bevel/Chamfer
    0.2 - 0.4 mm x 45 Degree
  • Clear Aperture
    20 mm
  • Parallelism
    < 20 arcsec
  • Surface Quality
    60-40 scratch-dig
  • Note
    Orientation: c-cut theta=0 deg +/-12 arcmin, GDD: <30 fs2

Physical Properties

  • Window Diameter
    25.4 mm
  • Diameter Tolerance
    0/-0.1 mm
  • Window Diameter
    25.4 mm
  • Thickness
    1 mm
  • Thickness
    0.04 Inches
