WW

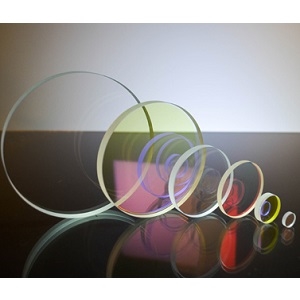

Optical Window by Rainbow Research Optics, LLC
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Rainbow Research Optics, LLC.

The WW from Rainbow Research Optics, LLC is a Optical Window with Wavelength Range 633 nm. More details for WW can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    WW
  • Manufacturer
    Rainbow Research Optics, LLC
  • Description
    Large Wedge Windows with 10-5 scratch-dig Surface Quality

General Parameters

  • Thickness Tolerance
    ±0.25 mm
  • Window Type
    Fused Silica Window, BK7 Window, Wedge Window
  • Window Shape
    Wedge
  • Wavelength Range
    633 nm
  • Substrate/Material
    UV Grade Fused Silica, BK7
  • Wedge Angle
    30 ± 6 arcmin
  • Bevel/Chamfer
    0.3 mm face width at 45 Degree
  • Clear Aperture
    >85%
  • Surface Flatness
    λ/10
  • Surface Quality
    10-5 scratch-dig

Physical Properties

  • Diameter Tolerance
    +0.0/-0.20 mm
