STSA-016

Optical Window by Sintec Optronics
94 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

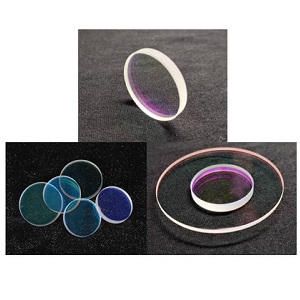

The STSA-016 from Sintec Optronics is a Optical Window with Wavelength Range 1064 nm, Window Diameter 42 mm, Window Diameter 42 mm, Thickness 3 mm, Thickness 0.118 Inches. More details for STSA-016 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    STSA-016
  • Manufacturer
    Sintec Optronics
  • Description
    Laser Protective Windows

General Parameters

  • Application
    Laser weldingmachines, laser marking machines and laser engraving machines
  • Damage Threshold
    >15 Jcm2
  • Thickness Tolerance
    ±0.1 mm
  • Window Type
    Quartz Window, IR Window
  • Window Shape
    Round
  • Window Color
    Infrared
  • Wavelength Range
    1064 nm
  • Substrate/Material
    Quartz
  • Coating Material
    AR Coating
  • Transmission
    0.995
  • Clear Aperture
    <80%
  • Parallelism
    <1 point
  • Surface Quality
    40-20 scratch-dig

Physical Properties

  • Window Diameter
    42 mm
  • Diameter Tolerance
    ±0.1 mm
  • Window Diameter
    42 mm
  • Thickness
    3 mm
  • Thickness
    0.118 Inches
