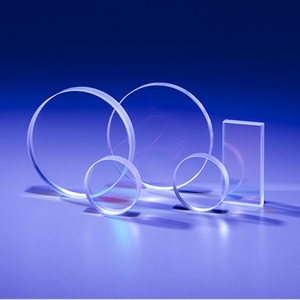

W1D-FLC

Optical Window by Teledyne Acton Optics
25 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne Acton Optics.

The W1D-FLC from Teledyne Acton Optics is a Optical Window with Wavelength Range 632.8 nm, Window Diameter 25.4 mm, Window Diameter 1 Inch, Thickness 6.35 mm, Thickness 0.25 Inch. More details for W1D-FLC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    W1D-FLC
  • Manufacturer
    Teledyne Acton Optics
  • Description
    25.4 mm Excimer-Grade CaF2 Windows

General Parameters

  • Application
    VUV-UV applications, High-Power Laser Applications
  • Thickness Tolerance
    ±0.25 mm
  • Window Type
    UV Window, Flat Window, CaF2 Window, Laser Window
  • Window Shape
    Flat, Round
  • Wavelength Range
    632.8 nm
  • Substrate/Material
    Excimer-grade CaF2
  • Bevel/Chamfer
    0.5 mm x 45 Degree
  • Clear Aperture
    85%
  • Parallelism
    3 arcmin
  • Surface Flatness
    λ/10
  • Surface Quality
    20-10 scratch-dig

Physical Properties

  • Window Diameter
    25.4 mm
  • Diameter Tolerance
    +0.00/-0.005 Inches
  • Window Diameter
    1 Inch
  • Thickness
    6.35 mm
  • Thickness
    0.25 Inch
