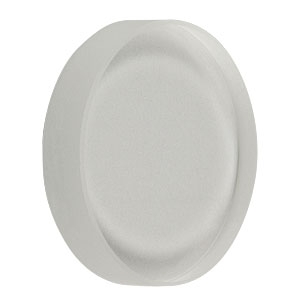

WW41050-C3

Optical Window by Thorlabs Inc
123 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The WW41050-C3 from Thorlabs Inc is a Optical Window with Coating Wavelength 261 to 266 nm, Window Diameter 25.4 mm, Window Diameter 1 Inch, Thickness 5.0 mm, Thickness 0.2 Inch. More details for WW41050-C3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    WW41050-C3
  • Manufacturer
    Thorlabs Inc
  • Description
    Ø1" Wedged Fused Silica Laser Window, AR Coated: 261 - 266 nm

General Parameters

  • Thickness Tolerance
    ±0.4 mm
  • Window Type
    Wedge Window
  • Window Shape
    Round
  • Coating Wavelength
    261 to 266 nm
  • Substrate/Material
    UV Fused Silica
  • Coating Material
    AR Coating
  • Wedge Angle
    30 ± 10 arcmin
  • Clear Aperture
    22.86 mm
  • Reflectance
    Ravg 0.5%
  • Surface Flatness
    λ/20, λ/10
  • Surface Quality
    10-5 scratch-dig

Physical Properties

  • Window Diameter
    25.4 mm
  • Diameter Tolerance
    +0.0 / -0.2 mm
  • Window Diameter
    1 Inch
  • Thickness
    5.0 mm
  • Thickness
    0.2 Inch
