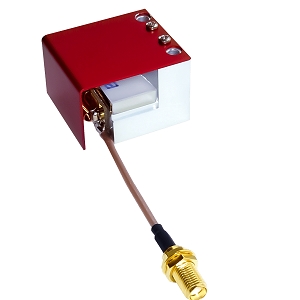

MCQ80-A0.8-L1064-Z32-Cxx

Acousto-Optic Frequency Shifter by AA Opto-Electronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AA Opto-Electronic.

The MCQ80-A0.8-L1064-Z32-Cxx from AA Opto-Electronic is a Acousto-Optic Frequency Shifter with Optical Wavelength 1030 to 1080 nm, Frequency Shift ±80 MHz, Acoustic Velocity 5740 m/s, Diffraction Efficiency >80 to 85%, RF Power 15 W. More details for MCQ80-A0.8-L1064-Z32-Cxx can be seen below.

Product Specifications

Product Details

  • Part Number
    MCQ80-A0.8-L1064-Z32-Cxx
  • Manufacturer
    AA Opto-Electronic

General Parameters

  • Optical Wavelength
    1030 to 1080 nm
  • Frequency Shift
    ±80 MHz
  • Acousto-Optic Material
    Quartz Crystal
  • Frequency Shift Type
    Fixed
  • Acoustic Velocity
    5740 m/s
  • Diffraction Efficiency
    >80 to 85%
  • Aperture
    0.8 x 0.8 mm2
  • Cooling Method
    Air Cooled
  • RF Power
    15 W
  • Extinction Ratio
    >30 dB
  • Input Impedance
    50 Ohms
  • Operating Temperature
    10 to 40 Degree C
  • Optical Power Density
    500 MW/cm2
  • Polarization
    Linear vertical, Linear vertical
  • Rise/Fall Time
    30 ns
  • RoHs
    Yes
  • Transmission
    >99%
  • VSWR
    <1.20:1
  • Beam Separation Angle
    >29.6 mrad

Applications

  • Application
    Intensity modulation and Frequency shifters

Fiber Parameters

  • Fiber Type
    Free Space

Connections & Interface

  • RF Connector
    SMA female

Environmental Conditions

  • Storage Temperature
    -40 to 65 Degree C

Physical Properties

  • Dimension
    33 x 36.5 x 25.8 mm3
  • Weight
    35 g
