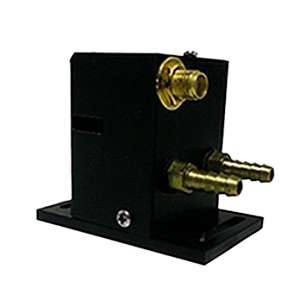

FSML-80-20-BR1064

Acousto-Optic Mode Locker by Brimrose Corporation
3 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Brimrose Corporation.

The FSML-80-20-BR1064 from Brimrose Corporation is a Acousto-Optic Mode Locker with RF Drive Frequency 80 MHz, Wavelength Range 1064 nm, RF Drive Power 5 to 7 W, 3dB Bandwidth ±10 kHz. More details for FSML-80-20-BR1064 can be seen below.

Product Specifications

Product Details

  • Part Number
    FSML-80-20-BR1064
  • Manufacturer
    Brimrose Corporation
  • Description
    5 x 5 mm Aperture, Fused Silica AO Mode Locker from 1064 nm

Applications

  • Application
    Photonic Sampling, Femtosecond Laser Micromachining, Corneal Surgery, Nonlinear Optics, Optical parametric oscillators, Optical Data Storage, OEM Designs

General Parameters

  • Substrate/Material
    Fused Silica
  • RF Drive Frequency
    80 MHz
  • Active Aperture
    Up to 5 x 5 mm
  • Wavelength Range
    1064 nm
  • Case Type
    Water Cooled
  • RF Drive Power
    5 to 7 W
  • Acoustic Mode
    Longitudinal
  • Optical Transmission
    99.7%
  • Acoustic Velocity
    5960 m/sec
  • Modulation Rate
    160 MHz
  • Carrier Frequency
    80 MHz
  • Fiber Type
    Free Space
  • Input Impedance
    50 Ohms
  • Input Power(Electric)
    5 to 7 W
  • Optical Band
    Ultraviolet, Visible
  • Resonant Modulation Depth
    0.6
  • Wave Front Distortion
    λ/10
  • Window Type
    Brewster
  • 3dB Bandwidth
    ±10 kHz
