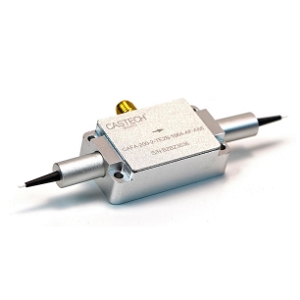

The CAFA-f-p-mxb-w-c-h from Castech Inc. are Fiber-Coupled Acousto-Optic Modulators that operate at wavelengths of 633 nm, 1064 nm, and 1550 nm. They have a center frequency of 80 MHz - 300 MHz and rise/fall time of less than 45 ns. These AOMs have Crystal Quartz or Tellurium Dioxide (TeO2) and require an RF power of 2 W. They have an insertion loss of up to 3 dB and extinction ratio greater than 45 dB. These AOMs support FC/APC and SMA-F RF connectors. They are available in an A88 housing module that measures 70 mm x 24 mm x 13.5 mm and are ideal for industrial laser, sensor communication, scientific research, & quantum technology applications.
