CAQS-027-a1-FSt-w-c

Acousto-Optic Modulator by GWU-Lasertechnik Vertriebsges

Note: Your Quotation Request will be directed to GWU-Lasertechnik Vertriebsges.

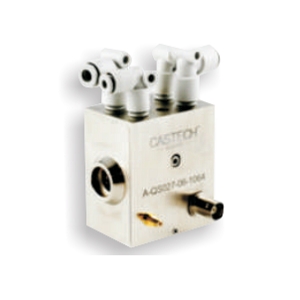

The CAQS-027-al-FSt-w-c from GWU-Lasertechnik Vertriebsges is a Fused silica Acousto-Optic Modulator (AOM) that operates at a wavelength of 1064 nm. It has an active aperture area that measures 1.6, 2, 3, 4, 5, 6.5 & 8 mm, an operating frequency of 27.12 MHz, and over 99.6% single-pass transmission efficiency. This randomly polarized AOM operates in Raman Nath mode and has a diffraction angle of 3.32 mrad with a diffraction efficiency of over 60%. It has a damage threshold above 1 GW/cm2 and a maximum VSWR of 1.20:1. This AOM requires 50 W of power for compressional acoustic mode and 100 W for shear acoustic mode. It is available in a module that measures 61.2 x 37.5 x 62 mm and has a BNC RF connector. This AOM is ideal for material processing, medical, and scientific applications.

Product Specifications

Product Details

  • Part Number
    CAQS-027-a1-FSt-w-c
  • Manufacturer
    GWU-Lasertechnik Vertriebsges
  • Description
    1064 nm Acousto-Optic Modulator for Medical & Scientific Applications

Fiber Parameters

  • Fiber Type
    Free Space

Temperature

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    0 to 50 Degree C

Connections & Interface

  • RF Connector
    BNC

General Parameters

  • Acousto-Optic Material
    Fused Silica
  • Diffraction Efficiency
    0.6
  • Applications
    Material Processing, Medical, Scientific
  • Optical Wavelength
    1064 nm
  • Active Aperture
    1.6, 2, 3, 4, 5, 6.5, 8 mm
  • RF Power
    50 to 100 W
  • Input Impedance
    50 Ohms
  • Polarization
    Random
  • RF Bandwidth
    27.12 MHz
  • Total Deflection Angle
    3.32 mrad
  • Transmission
    > 99.6 %
  • VSWR
    1.20:1
  • Center Frequency
    27.12 MHz
