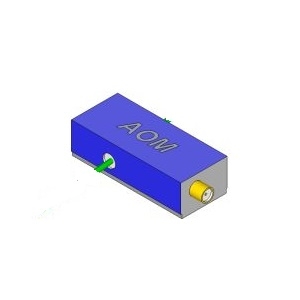

The M1250-P200L-0.75 from ISOMET is an Acousto-Optic Modulator that operates at a wavelength of 488 nm - 633 nm. It has a spectral range of 0.36 μm - 1.5 μm and an RF bandwidth of 100 MHz. This AOM has a lead molybdate (PbMo04) crystal medium with an acoustic velocity of 3.36 mm/µs and a center frequency of 200 MHz. It has an active aperture area of 0.75 mm and input impedance of 50 Ohms. It has a voltage standing wave ratio of less than 1.5:1 and DC contrast ratio above 2000:1.
The M1250-P200L-0.75 has a Bragg angle of 13.4 mrad - 17.4 mrad and separation angle of 26.9 mrad - 34.9 mrad. It has a static insertion loss of less than 5% and requires an RF drive power of up to 1.6 W. This AOM is available in a compact package that measures 50.76 (L) mm x 22.34 (W) mm x 16 (H) mm and is ideal for intensity modulators, low resolution deflectors & frequency shifter applications.
