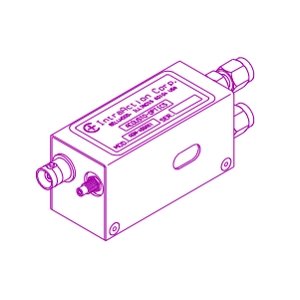

AGM-402A1

Acousto-Optic Modulator by IntraAction Corp.
30 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IntraAction Corp..

The AGM-402A1 from IntraAction Corp. is a Acousto-Optic Modulator with Operating Temperature 0 to 20 Degree C, Modulation Bandwidth 4.1 MHz, Diffraction Efficiency 0.7, Rise Time 116 ns, Optical Wavelength 10600 nm. More details for AGM-402A1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AGM-402A1
  • Manufacturer
    IntraAction Corp.
  • Description
    IR Acousto-Optic Modulator/Frequency Shifter

Fiber Parameters

  • Fiber Type
    Free Space

Temperature

  • Operating Temperature
    0 to 20 Degree C

Physical Properties

  • Dimension
    75 x 31 x 33 mm

Connections & Interface

  • RF Connector
    BNC

General Parameters

  • Acousto-Optic Material
    Single Crystal Germanium
  • Modulation Bandwidth
    4.1 MHz
  • Diffraction Efficiency
    0.7
  • Bragg Angle
    38.5 mrad
  • Separation Angle
    77 mrad
  • Rise Time
    116 ns
  • Applications
    Intensity Modulation, Optical Frequency shifting, Laser Beam Deflection
  • Optical Wavelength
    10600 nm
  • Colors
    IR
  • Acoustic Velocity
    5.5 mm / µsec
  • Active Aperture
    2 mm
  • RF Power
    20 W
  • Optical Power
    25 W
  • Frequency Shift
    30 to 50 MHz
  • Input Impedance
    50 Ohms
  • Polarization
    Parallel
  • Center Frequency
    40 MHz
  • Note
    Insertion loss: 7%
