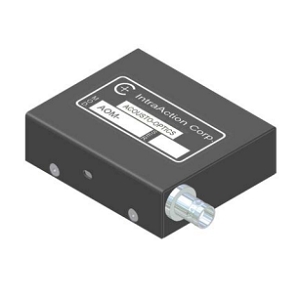

AOM-402AF4

Acousto-Optic Modulator by IntraAction Corp.
30 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to IntraAction Corp..

The AOM-402AF4 from IntraAction Corp. is a Acousto-Optic Modulator with Modulation Bandwidth 1.8 [email protected] mm / 2.7 [email protected] mm, Diffraction Efficiency 0.85, Rise Time 177 to 256 ns, Optical Wavelength 1064 nm, RF Power 5 W. More details for AOM-402AF4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AOM-402AF4
  • Manufacturer
    IntraAction Corp.
  • Description
    Free Space Acousto-Optic Modulator/Frequency Shifter ranges from 1064 nm

Fiber Parameters

  • Fiber Type
    Free Space

Physical Properties

  • Dimension
    22.4 x 74.7 x 62.5 mm

Connections & Interface

  • RF Connector
    BNC

General Parameters

  • Acousto-Optic Material
    Dense Flint Glass
  • Modulation Bandwidth
    1.8 [email protected] mm / 2.7 [email protected] mm
  • Diffraction Efficiency
    0.85
  • Separation Angle
    11.7 mrad
  • Rise Time
    177 to 256 ns
  • Applications
    Intensity Modulation, Photolithography, Optical Frequency shifting, Laser beam deflection, Temperature Deflection
  • Beam Diameter
    1.0 to 1.5 mm
  • Optical Wavelength
    1064 nm
  • Acoustic Velocity
    3.63 mm / µsec
  • Active Aperture
    2 mm
  • RF Power
    5 W
  • Fall Time
    177 to 265 ns
  • Frequency Shift
    ±30 to 50 MHz
  • Input Impedance
    50 Ohms
  • VSWR
    1.25:1
  • Center Frequency
    40 MHz
