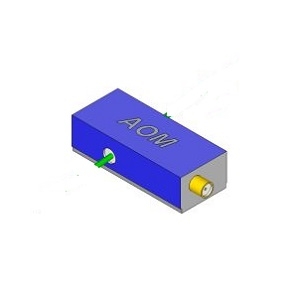

M1153-G68S-4

Acousto-Optic Modulator by ISOMET
72 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ISOMET.

The M1153-G68S-4 from ISOMET is a Acousto-Optic Modulator with Rise Time 355 ns, Optical Wavelength 2500 to 5000 nm, RF Power 8 to 45 W, Center Frequency 68 MHz. More details for M1153-G68S-4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M1153-G68S-4
  • Manufacturer
    ISOMET
  • Description
    AO modulator/low resolution deflector developed specifically to operate with high power unpolarized mid-IR lasers

Fiber Parameters

  • Fiber Type
    Free Space

Connections & Interface

  • RF Connector
    SMA

General Parameters

  • Acousto-Optic Material
    Single Crystal Germanium
  • Bragg Angle
    19.3 to 48.2 mrad
  • Separation Angle
    39.5 to 96.4 mrad
  • Rise Time
    355 ns
  • Beam Diameter
    3 mm
  • Optical Wavelength
    2500 to 5000 nm
  • Colors
    MIR
  • Acoustic Velocity
    3.53 mm / µsec
  • Active Aperture
    4 x 9 mm
  • RF Power
    8 to 45 W
  • RF Bandwidth
    10 MHz
  • Center Frequency
    68 MHz
  • Note
    Insertion Loss: 6 %
