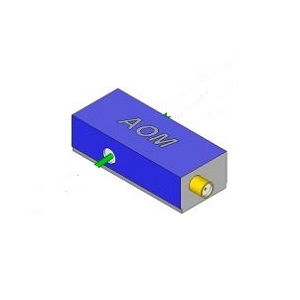

M1189-G40-4

Acousto-Optic Modulator by ISOMET
72 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ISOMET.

The M1189-G40-4 from ISOMET is a Acousto-Optic Modulator with Rise Time 355 ns, Optical Wavelength 9300 to 1060 nm, Center Frequency 40 MHz. More details for M1189-G40-4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M1189-G40-4
  • Manufacturer
    ISOMET
  • Description
    Small water cooled Germanium AO modulator ideal for compact IR laser applications or Q-switching of CO2 lasers

Fiber Parameters

  • Fiber Type
    Free Space

Connections & Interface

  • RF Connector
    SMA

General Parameters

  • Acousto-Optic Material
    Single Crystal Germanium
  • Bragg Angle
    33.9 to 38.6 mrad
  • Separation Angle
    67.7 to 77.1 mrad
  • Rise Time
    355 ns
  • Beam Diameter
    3 mm
  • Optical Wavelength
    9300 to 1060 nm
  • Colors
    MIR
  • Acoustic Velocity
    5.5 mm / µsec
  • Active Aperture
    4 x 10 mm
  • Input Impedance
    50 Ohms
  • Input VSWR
    1.70:1
  • Peak Optical Power
    200 W
  • Polarization
    Linear
  • RF Bandwidth
    10 MHz
  • Center Frequency
    40 MHz
  • Note
    Insertion Loss: 3.5 %
