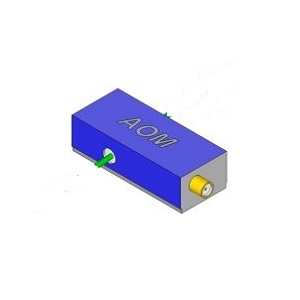

M1208-G13-8

Acousto-Optic Modulator by ISOMET

Note: Your Quotation Request will be directed to ISOMET.

The M1208-G13-8 from ISOMET is a Acousto-Optic Modulator with Rise Time 710 ns, Optical Wavelength 5000 to 6000 nm, RF Power 34 to 50 W, Center Frequency 13.56 MHz. More details for M1208-G13-8 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M1208-G13-8
  • Manufacturer
    ISOMET
  • Description
    Raman-Nath High efficiency Zero Order Modulator

Fiber Parameters

  • Fiber Type
    Free Space

Connections & Interface

  • RF Connector
    SMA

General Parameters

  • Acousto-Optic Material
    Single Crystal Germanium
  • Separation Angle
    12.33 to 14.8 mrad
  • Rise Time
    710 ns
  • Beam Diameter
    4 mm
  • Optical Wavelength
    5000 to 6000 nm
  • Colors
    MIR
  • Acoustic Velocity
    5.5 mm / µsec
  • Active Aperture
    8 x 8 mm
  • RF Power
    34 to 50 W
  • Input Impedance
    50 Ohms
  • Input VSWR
    1.50:1
  • Polarization
    Linear
  • RF Bandwidth
    5 MHz
  • Center Frequency
    13.56 MHz
  • Note
    Insertion Loss: 4 %
