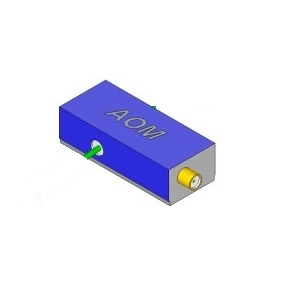

M1250-P200L-0p75

Acousto-Optic Modulator by ISOMET
72 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ISOMET.

The M1250-P200L-0p75 from ISOMET is a Acousto-Optic Modulator with Rise Time 180 ns, Optical Wavelength 633 to 830 nm, Optical Power 1.3 W, Center Frequency 200 MHz. More details for M1250-P200L-0p75 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M1250-P200L-0p75
  • Manufacturer
    ISOMET
  • Description
    NIR Acousto Modulator ranges from 633 to 830 nm

Fiber Parameters

  • Fiber Type
    Free Space

Connections & Interface

  • RF Connector
    SMA

General Parameters

  • Acousto-Optic Material
    Lead Molybdate (PbMo04)
  • Bragg Angle
    17.4 to 22.9 mrad
  • Separation Angle
    34.9 to 45.7 mrad
  • Rise Time
    180 ns
  • Applications
    Modulator, Low resolution Deflector, Frequency Shifter
  • Optical Wavelength
    633 to 830 nm
  • Colors
    NIR
  • Acoustic Velocity
    3.63 mm/ µsec
  • Active Aperture
    0.7 mm
  • Optical Power
    1.3 W
  • Contrast Ratio
    1000:1, 2000:1
  • Input Impedance
    50 Ohms
  • Peak Optical Power
    1.6 to 3.2 W
  • RF Bandwidth
    50 MHz
  • VSWR
    1.50:1
  • Center Frequency
    200 MHz
  • Note
    Insertion Loss: 3%
