M1315-G40-7,-8,-9

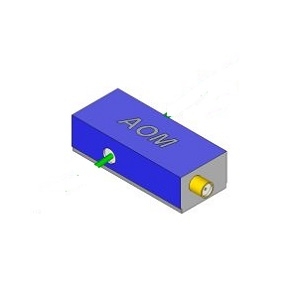

Acousto-Optic Modulator by ISOMET
72 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ISOMET.

The M1315-G40-7,-8,-9 from ISOMET is a Acousto-Optic Modulator with Rise Time 945 ns, Optical Wavelength 9400 to 1060 nm, Center Frequency 40 MHz. More details for M1315-G40-7,-8,-9 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M1315-G40-7,-8,-9
  • Manufacturer
    ISOMET
  • Description
    low loss single beam modulators optimized for duty cycled application

Fiber Parameters

  • Fiber Type
    Free Space

Connections & Interface

  • RF Connector
    SMA

General Parameters

  • Acousto-Optic Material
    Single Crystal Germanium
  • Bragg Angle
    34.2 to 38.5 mrrad
  • Separation Angle
    68.4 to 77.1 mrad
  • Rise Time
    945 ns
  • Applications
    Material Processing, Via Hole Drilling, Surface texturing , Hole Perforation
  • Beam Diameter
    7 mm
  • Optical Wavelength
    9400 to 1060 nm
  • Colors
    MIR
  • Active Aperture
    6 x 15 mm
  • Peak Optical Power
    180 W
  • Polarization
    Linear
  • RF Bandwidth
    10 MHz
  • Center Frequency
    40 MHz
  • Note
    Insertion loss: 5%
