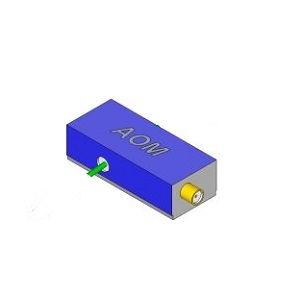

M1377-aQ41-1,2

Acousto-Optic Modulator by ISOMET
72 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ISOMET.

The M1377-aQ41-1,2 from ISOMET is a Acousto-Optic Modulator with Diffraction Efficiency 75 to 80%, Rise Time 90 to 180 ns, Optical Wavelength 1064 nm, RF Power 10 to 20 W. More details for M1377-aQ41-1,2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M1377-aQ41-1,2
  • Manufacturer
    ISOMET
  • Description
    conduction cooled acousto-optic modulator / Q-switch designed for use with polarized DPSS Nd:YLF and Nd:YAG SHG lasers

Fiber Parameters

  • Fiber Type
    Free Space

Connections & Interface

  • RF Connector
    SMA

General Parameters

  • Acousto-Optic Material
    Quartz Crystal
  • Diffraction Efficiency
    75 to 80%
  • Bragg Angle
    3.8 mrad
  • Separation Angle
    7.6 mrad
  • Rise Time
    90 to 180 ns
  • Beam Diameter
    0.8 to 1.6 mm
  • Optical Wavelength
    1064 nm
  • Active Aperture
    1.0 to 2.0 mm
  • RF Power
    10 to 20 W
  • Input Impedance
    50 Ohms
  • Polarization
    Linear, Vertical
  • RF Bandwidth
    10.0 MHz
  • Transmission
    99.5%
  • VSWR
    1.20:1
