97-03388-02R2 (5041-296)

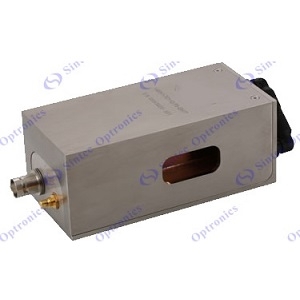

Acousto-Optic Modulator by Sintec Optronics
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The 97-03388-02R2 (5041-296) from Sintec Optronics is a Acousto-Optic Modulator with Rise Time 113 ns, Optical Wavelength 1064 nm, RF Power 20 W, Center Frequency 40.48 MHz. More details for 97-03388-02R2 (5041-296) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    97-03388-02R2 (5041-296)
  • Manufacturer
    Sintec Optronics
  • Description
    Acousto-optical Modulator, Acousto-optical Q-switch

Fiber Parameters

  • Fiber Type
    Fiber Coupled

General Parameters

  • Acousto-Optic Material
    Quartz Crystal
  • Separation Angle
    7.6 mrad
  • Rise Time
    113 ns
  • Optical Wavelength
    1064 nm
  • Active Aperture
    1.5 mm
  • RF Power
    20 W
  • Frequency Shift
    40.48 MHz
  • Input Impedance
    50 Ohms
  • Polarization
    Linear, Random
  • Transmission
    >99.6%
  • VSWR
    <1.20:1
  • Center Frequency
    40.48 MHz
  • Note
    Damage threshold: >500MW/cm2, AR coating reflectivity: <0.2% per surface, Acoustic mode: Compressional
