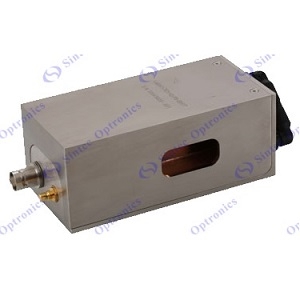

I-M040-2C8B1-3-GH84

Acousto-Optic Modulator by Sintec Optronics

Note: Your Quotation Request will be directed to Sintec Optronics.

The I-M040-2C8B1-3-GH84 from Sintec Optronics is an Acousto-Optic Modulator (AOM) that operates at a frequency of 40 MHz and a wavelength from 1900 nm to 2100 nm. It has an AMTIR active aperture that measures 2 mm and has a rise/fall time of 260 ns/mm. This AOM can be controlled with an RF Driver that provides the electronic signal for the operation. With a digital driver, an external TTL signal enables rapid on and off switching of the optical beam and an analogue driver enables a variable intensity output, typically from 0% to 85% of the input beam. It is ideal for pre-press (putting image and text data onto films or plates as part of the printing process), laser imaging and displays, switching in telecom fibers, instrumentation and research.

Product Specifications

Product Details

  • Part Number
    I-M040-2C8B1-3-GH84
  • Manufacturer
    Sintec Optronics
  • Description
    40 MHz Acousto-Optic Modulator for Instrumentation & Research Applications

Fiber Parameters

  • Fiber Type
    Fiber Coupled

General Parameters

  • Acousto-Optic Material
    AMTIR-1 Chalcogenide Glass
  • Rise Time
    260 ns
  • Optical Wavelength
    1900 to 2100 nm
  • Active Aperture
    2 mm
  • Frequency Shift
    40 MHz
  • Center Frequency
    40 MHz
Click to view more product details on manufacturer's website
