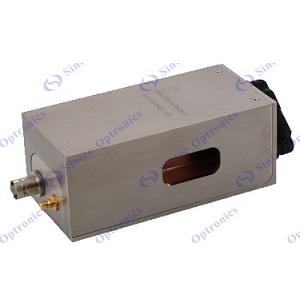

I-M080-2C10G-4-AM3

Acousto-Optic Modulator by Sintec Optronics
63 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The I-M080-2C10G-4-AM3 from Sintec Optronics is a Acousto-Optic Modulator with Rise Time 113 ns, Optical Wavelength 1030 to 1064 nm, RF Power 15 W, Center Frequency 80 MHz. More details for I-M080-2C10G-4-AM3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    I-M080-2C10G-4-AM3
  • Manufacturer
    Sintec Optronics
  • Description
    Acousto-optical Modulator, Acousto-optical Q-switch

Fiber Parameters

  • Fiber Type
    Fiber Coupled

General Parameters

  • Acousto-Optic Material
    Quartz Crystal
  • Separation Angle
    14.9 mrad
  • Rise Time
    113 ns
  • Optical Wavelength
    1030 to 1064 nm
  • Active Aperture
    2 mm
  • RF Power
    15 W
  • Frequency Shift
    80 MHz
  • Polarization
    Linear
  • Transmission
    >99.4%
  • VSWR
    <1.20:1
  • Center Frequency
    80 MHz
  • Note
    Damage threshold: >1GW/cm2, AR coating reflectivity: <0.3% per surface, Acoustic mode: Compressional
