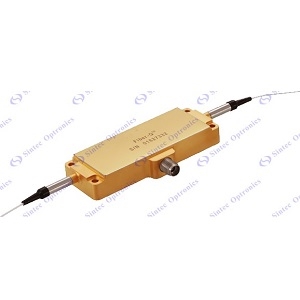

STG-T-M080-0.4C2J-3-F2P

Acousto-Optic Modulator by Sintec Optronics
63 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STG-T-M080-0.4C2J-3-F2P from Sintec Optronics is a Acousto-Optic Modulator with Rise Time 35 ns, Optical Wavelength 1530 to 1565 nm, RF Power 3 W, Optical Power 1 W, Center Frequency 80 MHz. More details for STG-T-M080-0.4C2J-3-F2P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    STG-T-M080-0.4C2J-3-F2P
  • Manufacturer
    Sintec Optronics
  • Description
    Polarization Maintaining 1550 nm Fiber Coupled Acousto-Optic Modulator

Fiber Parameters

  • Fiber Coupled
    Fujikura PM1550
  • Fiber length
    1.5 m
  • Fiber Type
    Fiber Coupled

General Parameters

  • Acousto-Optic Material
    Tellurium Dioxide (TeO2)
  • Rise Time
    35 ns
  • Applications
    Sensing (Heterodyne Interferometry), Intensity Modulation, Pulse Picking
  • Optical Wavelength
    1530 to 1565 nm
  • RF Power
    3 W
  • Optical Power
    1 W
  • Extinction Ratio
    50 dB
  • Frequency Shift
    80 MHz
  • Input Impedance
    50 Ohms
  • Insertion Loss
    2 to 3 dB
  • Peak Optical Power
    1 kW
  • Polarization Extinction Ratio
    18 to 20 dB
  • Return Loss
    40 dB
  • VSWR
    1.20:1
  • Center Frequency
    80 MHz
