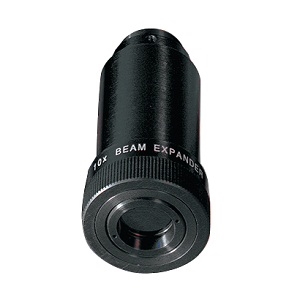

T81-10X

Beam Expander by MKS | Newport

Note: Your Quotation Request will be directed to MKS | Newport.

The T81-10X from MKS | Newport is a Beam Expander with Wavelength 480 to 1100 nm, Beam Expander Diameter Enterance Beam Diameter: 1 mm, Beam Expander Length 12 mm. More details for T81-10X can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    T81-10X
  • Manufacturer
    MKS | Newport
  • Description
    10X Laser Beam Expander, 1.5 mm Entrance, 12 mm Exit, 2 m to Infinity

General Parameters

  • Beam Expander Type
    laser beam expanders
  • Wavelength
    480 to 1100 nm
  • Magnification
    10x
  • Transmission(%)
    95%
  • Exit Aperture(Output)
    1.5 mm
  • Entrance Beam Diameter
    1.0 mm
  • Beam Expander Diameter
    Enterance Beam Diameter: 1 mm
  • Beam Expander Length
    12 mm
  • Coating Material
    MgF2
  • Mounting Thread
    Mounting thread: 1.0 in. x 32 TPI
  • Damage Threshold
    100 W/cm2 CW, 2J/cm2 with 10 nsec pulses, typical
  • Transmitted Wavefront Distortion
    λ/4 on axis at 632.8 nm
  • Note
    Focus Range: 2 m to infinity
