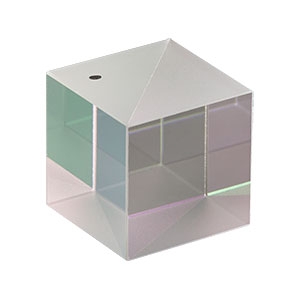

BS006

Beam Splitter by Thorlabs Inc
258 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The BS006 from Thorlabs Inc is a Beam Splitter with Wavelength Range 1100 to 1600 nm. More details for BS006 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BS006
  • Manufacturer
    Thorlabs Inc
  • Description
    50:50 Non-Polarizing Beamsplitter Cube, 1100-1600 nm, 1/2"

Physical Properties

  • Construction
    Cube
  • Beamsplitter Dimension
    12.7 x 12.7 x 12.7 mm

General Parameters

  • Beamsplitter Type
    Cube Beamsplitters, Non-Polarizing Beamsplitters
  • Beamsplitter Shape
    Cube
  • Wavelength Range
    1100 to 1600 nm
  • Beam Deviation Tolerance
    ±5 arcmin
  • Beam Deviation
    90 Degree
  • Reflection(%)
    50%
  • Transmission(%)
    50%
  • Transmitted Wavefront Error
    λ/4
  • Split Ratio(%)
    50:50
  • Split Ratio Tolerance
    ±10%
  • Wedge Angle Tolerance
    ±5 arcmin
  • Angle of Incidence
    0 Degree
  • Clear Aperture
    80%
  • Substrate/Material
    N-BK7
  • Surface Flatness
    λ/10
  • Surface Quality
    40-20 Scratch-Dig
  • Dimension Tolerance
    +0.0/-0.2 mm
