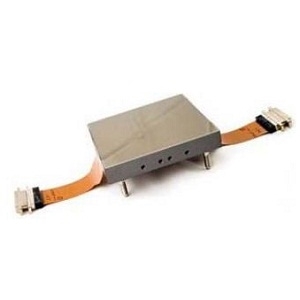

CCD231-C6 (BI, NIMO)

CCD Image Sensor by Teledyne e2v
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne e2v.

The CCD231-C6 (BI, NIMO) from Teledyne e2v is a CCD Image Sensor with Spectral Range 300 to 1060 nm. More details for CCD231-C6 (BI, NIMO) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CCD231-C6 (BI, NIMO)
  • Manufacturer
    Teledyne e2v
  • Description
    CCD231-C6 Back-illuminated Scientific CCD Sensor 6144 x 6160 Pixels, Four Outputs

General Parameters

  • Pixels :
    37.8 MP
  • Resolution
    6144 (H) x 6160 (V)
  • Spectral Range
    300 to 1060 nm
  • Pixel Size(H x V)
    15 x 15 µm
  • Package
    SiC Flexi Buttable
  • Sensor Type
    Front Illuminated
  • Frame Architecture
    Full Frame, Frame Transfer
  • Charge Transfer Efficiency :
    Parallel, Serial 99.9990%, 99.9995%
  • Active Image Area
    92.2 x 92.4 mm
  • Data Rate
    3 MHz
  • Package Size
    98.5 x 93.7 mm
  • Peak Charge Storage
    350000 ke-/pixel
  • Pixel Readout Frequency :
    1000 to 3000 KHz
  • Readout Noise :
    5 e-rms at 1 MHz, 2 e-rms at 50 kHz
  • Sensitivity
    8 µV/e-
