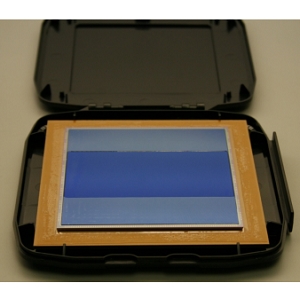

CCD1600-FT

CCD Image Sensor by ANDANTA
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ANDANTA.

The CCD1600-FT from ANDANTA is a CCD Image Sensor with Frame Rate 1 to 2 Hz. More details for CCD1600-FT can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CCD1600-FT
  • Manufacturer
    ANDANTA
  • Description
    28 MP UV-VIS-NIR Frame Transfer, Deep Depletion Sensors

General Parameters

  • Pixels :
    28 MP
  • Resolution
    10560(H) x 2640(V)
  • Frame Rate :
    1 to 2 Hz
  • Pixel Size(H x V)
    9 µm x 9 µm
  • Sensor Type
    Frame Transfer Sensors, Deep Depletion Sensors
  • Frame Architecture
    Frame Transfer (FT)
  • Chroma
    Ultraviolet, Visible, Near-Infrared
  • Photosensitive Area
    95 x 47.5 mm2
  • Active Image Area
    95 x 47.5 mm2
  • Data Rate
    100 kHz to 10 MHz
  • Full Well Capacity
    >80000 e-
  • Quantum Efficiency :
    >40 to 95%
  • Readout Noise :
    7 to 9 e-
