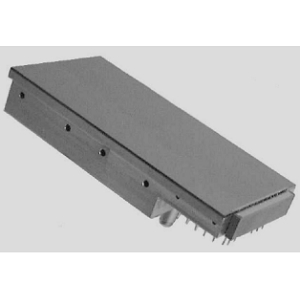

CCD261-84

CCD Image Sensor by Teledyne e2v
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne e2v.

The CCD261-84 from Teledyne e2v is a CCD Image Sensor with Frame Rate 0.2 fps. More details for CCD261-84 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CCD261-84
  • Manufacturer
    Teledyne e2v
  • Description
    8.4 MP 0.2 fps Buttable, PGA Package Back Illuminated, Full Frame, Frame Transfer Sensors

General Parameters

  • Pixels :
    8.4 MP
  • Resolution
    2048(H) x 4104(V)
  • Frame Rate :
    0.2 fps
  • Pixel Size(H x V)
    15 µm x 15 µm
  • Package
    Buttable, PGA
  • Sensor Type
    Back Illuminated Sensors, Full Frame Sensors, Frame Transfer Sensors
  • Frame Architecture
    Full Frame (FF), Frame Transfer (FT)
  • Chroma
    Infrared
  • Charge Transfer Efficiency :
    99.9990 to 99.9995% (parallel), 99.9990 to 99.9998% (serial)
  • Window Material
    nickel–iron alloy
  • Active Image Area
    30.7 x 61.6 mm2
  • Data Rate
    1 MHz
  • Full Well Capacity
    200 Ke- (Non-inverted)
  • Package Size
    31.8 x 66.4 mm
  • Peak Charge Storage
    150000 to 120000 e-/pix (IFWC), 500000 e-/pix (RFWC)
  • Pixel Readout Frequency :
    500 kHz
  • Readout Noise :
    2.8 e-
  • Sensitivity
    7.5 µV/e-
  • Note
    Focal plane height: 14 mm, Dark signal: 10 e-/pixel/hr

Temperature

  • Operating Temperature
    153 to 323 K
  • Storage Temperature
    143 to 373 K
