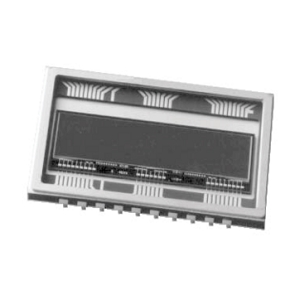

CCD30-11

CCD Image Sensor by Teledyne e2v
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne e2v.

The CCD30-11 from Teledyne e2v is a CCD Image Sensor with Frame Rate 19.1 fps, Spectral Range 200 to 1060 nm. More details for CCD30-11 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CCD30-11
  • Manufacturer
    Teledyne e2v
  • Description
    0.3 MP 19.1 fps Ceramic Package Back Illuminated, Full Frame Sensors

Applications

  • Applications
    Spectroscopy, Scientific Imaging, TDI Operation

General Parameters

  • Pixels :
    0.3 MP
  • Resolution
    1024(H) x 255(V)
  • Frame Rate :
    19.1 fps
  • Spectral Range
    200 to 1060 nm
  • Pixel Size(H x V)
    26 µm x 26 µm
  • Package
    Ceramic
  • Sensor Type
    Back Illuminated Sensors, Full Frame Sensors
  • Frame Architecture
    Full Frame (FF)
  • Dynamic Range
    83000:1
  • Chroma
    Ultraviolet, Visible, Near-Infrared
  • Charge Transfer Efficiency :
    99.999% (Parallel), 99.9993% (Serial)
  • Window Material
    Quartz, Removable glass
  • Active Image Area
    26.6 x 6.7 mm2
  • Full Well Capacity
    700 Ke- (Non-inverted), 500 Ke-(Advanced Inverted)
  • Package Size
    32.89 x 20.07 mm
  • Peak Charge Storage
    500 ke-/pix
  • Pixel Readout Frequency :
    20 to 5000 kHz
  • Readout Noise :
    6 e-rms
  • Sensitivity
    1.5 µV/e-
  • Note
    Dark signal: 250 to 2000 e-/pixel/s

Temperature

  • Operating Temperature
    73 to 323 K
  • Storage Temperature
    73 to 373 K
