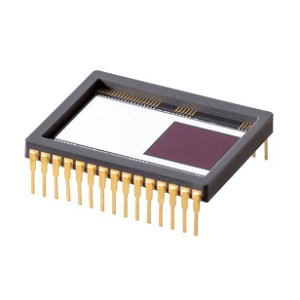

CCD351-00

CCD Image Sensor by Teledyne e2v
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne e2v.

The CCD351-00 from Teledyne e2v is a CCD Image Sensor with Frame Rate 35.3 fps. More details for CCD351-00 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CCD351-00
  • Manufacturer
    Teledyne e2v
  • Description
    1 MP 35.3 fps Ceramic Package Back Illuminated, Frame Transfer Sensors

General Parameters

  • Pixels :
    1 MP
  • Resolution
    1024(H) x 1024(V)
  • Frame Rate :
    35.3 fps
  • Pixel Size(H x V)
    10 µm x 10 µm
  • Package
    Ceramic
  • Sensor Type
    Back Illuminated Sensors, Frame Transfer Sensors
  • Frame Architecture
    Frame Transfer (FT)
  • Charge Transfer Efficiency :
    99.999%
  • Active Image Area
    10.24 x 10.24 mm2
  • Data Rate
    37 MHz
  • Full Well Capacity
    35 Ke- (EMCCD)
  • Package Size
    22.86 x 28 mm
  • Peak Charge Storage
    35 ke-/pix
  • Pixel Readout Frequency :
    37 MHz
  • Readout Noise :
    <1 to 50 e-
  • Sensitivity
    3.0 µV/e-
  • Note
    Dark signal: 100 e-/pixel/s

Temperature

  • Operating Temperature
    -120 to 75 Degree C
  • Storage Temperature
    -200 to 100 Degree C
