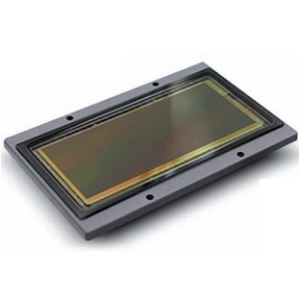

Hires-CMOS 1205

CMOS Image Sensor by ANDANTA
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ANDANTA.

The Hires-CMOS 1205 from ANDANTA is a 60 megapixel CMOS Image Sensor designed for high-resolution high-speed industrial inspection applications. It provides a frame rate of 10 fps at full resolution, which makes it ideal for LCD and PCB inspection. The frame rate can be further increased in row-windowing mode. The CMOS sensor also provides excellent NIR (Near Infrared) sensitivity, suitable for the most demanding high-end security and surveillance applications. It is mounted in a 184 pins PGA ceramic package with excellent heat dissipation and reliability. It consumes less than 1.5 W at full frame rate. Monochrome (with NIR enhancement) and color versions are available for different applications.

Product Specifications

View similar products

Product Details

  • Part Number
    Hires-CMOS 1205
  • Manufacturer
    ANDANTA
  • Description
    60 Megapixels CMOS Image Sensor

General Parameters

  • Resolution
    12000 (H) x 5000 (V)
  • Mega Pixels
    60 MP
  • Shutter Type
    Electronic Rolling Shutter (ERS)
  • Frame Rate
    10 Frames/sec
  • Pixel
    60 MP
  • Pixel Size
    5.5 µm x 5.5 µm
  • Data Rate
    9.6 Gbit/s
  • Sensitivity
    5.58 x 107e- /((W/m2)·s)
  • Dynamic Range
    76.5 dB
  • Chroma
    Near-Infrared, Color, Monochrome
  • SNR
    43.8 dB
  • ADC Resolution
    16 Bit
  • Clock Frequency
    25 MHz
  • Supply Voltage
    3.3 V / 1.8 V
  • Power Consumption
    1.5 W
  • Package Type
    PGA, Ceramic
  • Note
    Dark noise: 2.9 e-, Dark current: <23.9 e- / s / pix, Quantum efficiency: 40 to 64%, Full well charge: 22 ke-, Photosensitive area: 66 mm x 27.5 mm

Connections & Interface

  • Interface
    LVDS, SPI, PLL

Applications

  • Application
    Industrial Inspection, Security and Surveillance, Biometric Identity Verification
  • Application Type
    Security

Physical Properties

  • Package
    184 Pins PGA Ceramic Package

Temperature

  • Operating Temperature
    -55 to 85 Degree C
