EV1S02KM-CLV0100-T

CMOS Image Sensor by Teledyne e2v

Note: Your Quotation Request will be directed to Teledyne e2v.

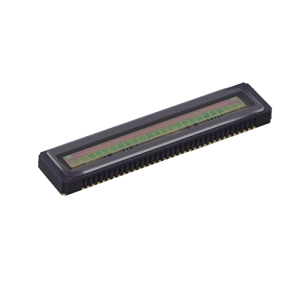

The EV1S02KM-CLV0100-T from Teledyne e2v is a CMOS Line Scan Image Sensor that has a resolution of 2048 x 4 pixels (2K). It produces Red, Green, Blue and Monochrome (RGB+Mono) sensor outputs and has a synchronized shutter design with a maximum line rate of up to 25 kHz (4 rows). This quad-linear image sensor provides a dynamic range of 71 dB and has a responsivity of 480 (R), 370 (G), 240 (B), 500 (Mono) DN12 / (nJ/cm²). It consumes 1 W of power.

The EV1S02KM-CLV0100-T provides low read noise and high dynamic range through the use of the digital Correlated Double Sampling (CDS) technique. Each color channel of this imaging sensor has its own exposure control which provides easy-to-perform white balancing. It is available in a ceramic LCC package and is ideal for food sorting, mineral sorting, recycling, logistics, pick and place, and other machine vision applications that require cost-effective mono, color, and multispectral imaging.

Product Specifications View similar products

Product Details

  • Part Number
    EV1S02KM-CLV0100-T
  • Manufacturer
    Teledyne e2v
  • Description
    2K RGB+Mono CMOS Line Scan Image Sensor

General Parameters

  • Resolution
    2048 (H) x 4 (V)
  • Package Type
    Ceramic, LCC
  • Chroma
    RGB, Monochrome
  • ADC Resolution
    12 Bit
  • Pixel Size
    14 µm x 14 µm
  • Line Rate
    25 kHz x 4
  • Dynamic Range
    71 dB
  • Type
    Line Scan Sensor
  • Sensitivity
    480 (R), 370 (G), 240 (B), 500 (Mono) DN12 / (nJ/cm2)
  • Power Consumption
    1 W
  • RoHS
    Yes
  • Note
    Random Noise: 7.8 e-, Conversion Gain: 0.14 DN12/e-, Full Well: 29 ke-

Connections & Interface

  • Interface
    LVDS

Applications

  • Application
    Sorting, Logistics, Pick and place, Spectroscopy, Machine Vision
  • Application Type
    Scientific, Machine Vision

Temperature

  • Operating Temperature
    0 to 60 Degree C
