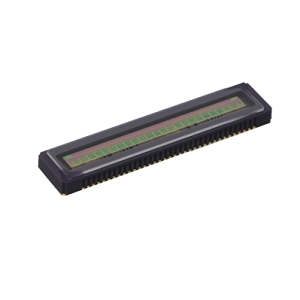

EV1S04KM-CLV0100-T

CMOS Image Sensor by Teledyne e2v
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Teledyne e2v.

The EV1S04KM-CLV0100-T from Teledyne e2v is a CMOS Image Sensor with Dynamic Range 71.5 dB, Sensitivity 120 (R), 100(G), 65 (B), 130 (Mono) DN12 / (nJ/cm2), Operating Temperature -10 to 60 Degree C. More details for EV1S04KM-CLV0100-T can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    EV1S04KM-CLV0100-T
  • Manufacturer
    Teledyne e2v
  • Description
    4k x 4, 7 x 7um, 32kHz x 4, RGB+Mono, LVDS, 12 bit ADC, Ceramics

General Parameters

  • Resolution
    4096 (H) x 4 (V)
  • Package Type
    Ceramic, LCC
  • Chroma
    Color, Monochrome
  • ADC Resolution
    12 Bit
  • Pixel Size
    7 µm x 7 µm
  • Line Rate
    32 kHz x 4
  • Dynamic Range
    71.5 dB
  • Type
    Line Scan Sensor
  • Sensitivity
    120 (R), 100(G), 65 (B), 130 (Mono) DN12 / (nJ/cm2)
  • Power Consumption
    1.7 W
  • RoHS
    Yes
  • Note
    Random Noise: 8.5 e-, Conversion Gain: 0.13 DN12/e-, Full Well: 31.5 ke-

Connections & Interface

  • Interface
    LVDS

Applications

  • Application
    Sorting, Logistics, Pick and place, Spectroscopy, Machine Vision
  • Application Type
    Scientific, Machine Vision

Temperature

  • Operating Temperature
    -10 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
