Hydra3D

CMOS Image Sensor by Teledyne e2v

Note: Your Quotation Request will be directed to Teledyne e2v.

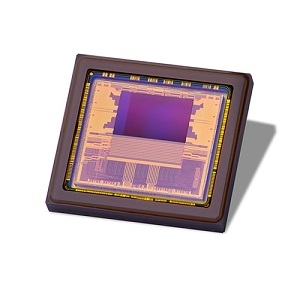

The Hydra3D from Teledyne e2v is a 0.5 Megapixel CMOS Image Sensor that has a resolution of 832 (H) x 600 (V) pixels. It has a three-tap global shutter or gated global shutter in a 2/3" optical format that delivers a frame rate of 416.7 fps (at 12-bit). This image sensor has a pixel size of 10 µm x 10 µm and an aspect ratio of 4:3. It has a quantum efficiency of 37 % (at 850 nm) & 19 % (at 940 nm) and transfer time of up to 20 ns. This image sensor has a dynamic range of 60 dB - 64.7 dB and linearity from -1% to +1 %. It has a full well capacity of 10000 - 30000 e-, readout noise of 2.5 e-, and temporal noise of 10 - 17.3 e-.

The Hydra3D has multiple acquisition modes, high dynamic range mode, multiple trigger modes, and row-wise ROI (up to 4 for distance measurement, 1 for 2D greyscale image) & column-wise ROI (with 64 columns granularity). This image sensor has scalable LVDS outputs, SPI controls, HFPN correction, and on-chip multi-system management. It consumes 2.2 W of power and is available in a ceramic LGA package that measures 24 mm (H) x 22 mm (V). This image sensor is ideal for 3D imaging, factory automation, robotics, logistics, surveillance, ITS, mapping/building, and drone applications.

Product Specifications

View similar products

Product Details

  • Part Number
    Hydra3D
  • Manufacturer
    Teledyne e2v
  • Description
    CMOS Image Sensor for Factory Automation & 3D Imaging Applications

General Parameters

  • Resolution
    832 (H) x 600 (V)
  • Mega Pixels
    0.5 MP
  • Optical Format
    2/3 Inch
  • Package Type
    Ceramic, LGA
  • Shutter Type
    Global Shutter
  • Frame Rate
    416.7 Frames/sec
  • ADC Resolution
    12 Bit
  • Pixel Size
    10 µm x 10 µm
  • Pixel
    0.5 MP
  • Dynamic Range
    60 to 64.7 dB
  • Power Consumption
    2.2 W
  • Note
    Readout noise: 2.5 e-

Connections & Interface

  • Interface
    LVDS, SPI

Applications

  • Application
    Factory Automation, Robotics, Logistics, Surveillance, ITS, Mapping / Building, Drones

Physical Properties

  • Optical Diagonal
    10.3 mm
  • Package
    Ceramic LGA

Temperature

  • Operating Temperature
    -40 to 105 Degree C
