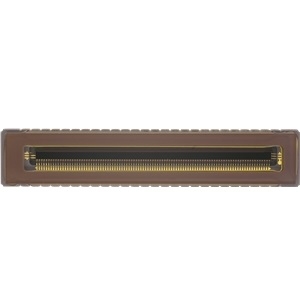

GL1402

CMOS Image Sensor by Gpixel Microelectronics Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Gpixel Microelectronics Inc..

The GL1402 from Gpixel Microelectronics Inc. is a CMOS Image Sensor with Data Rate 2.08 Gbps, Dynamic Range 70 dB, SNR 44.5 dB, Supply Voltage 3.6 V (Analog), 1.8 to 3.3 V (IO), 1.5 V (Digital). More details for GL1402 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GL1402
  • Manufacturer
    Gpixel Microelectronics Inc.
  • Description
    2.08 Gbps Global Shutter CMOS Sensor with CLCC Package

General Parameters

  • Resolution
    2048 (H) x 1 (V), 2048 (H) x 3 (V)
  • Optical Format
    28.896 mm
  • Shutter Type
    Global Shutter
  • Pixel
    2K
  • Pixel Size
    14 x 14 µm
  • Active Array
    2048 (H) x 1 (V), 2048 (H) x 3 (V)
  • Imaging Area
    28.896 mm (photosensitive area)
  • Line Rate
    81 kHz
  • Data Rate
    2.08 Gbps
  • Dynamic Range
    70 dB
  • Chroma
    Monochrome, RGB, Color
  • SNR
    44.5 dB
  • ADC Resolution
    12 Bit
  • Type
    Line Scan Sensor
  • Supply Voltage
    3.6 V (Analog), 1.8 to 3.3 V (IO), 1.5 V (Digital)
  • Power Consumption
    <0.42 W
  • Package Type
    CLCC

Connections & Interface

  • Interface
    Sub-LVDS

Applications

  • Application
    Automation & Inspection, Tomography (OCT)

Physical Properties

  • Package
    54-Pins CLCC
  • Dimensions
    38 x 7.4 mm
