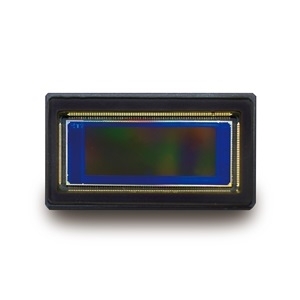

GMAX3413

CMOS Image Sensor by Gpixel Microelectronics Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Gpixel Microelectronics Inc..

The GMAX3413 from Gpixel Microelectronics Inc. is a CMOS Image Sensor with Mega Pixels 12.7 MP, Frame Rate 32 fps, Data Rate 7.68 Gbps, Dynamic Range 71.4 dB, SNR 39.3 dB. More details for GMAX3413 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GMAX3413
  • Manufacturer
    Gpixel Microelectronics Inc.
  • Description
    12.7 MP Global Shutter CMOS Sensor with LGA Package

General Parameters

  • Resolution
    5900 (H) x 2160 (V)
  • Mega Pixels
    12.7 MP
  • Optical Format
    4/3 Inches
  • Shutter Type
    Global Shutter
  • Frame Rate
    32 fps
  • Pixel
    12.7 MP
  • Pixel Size
    3.4 x 3.4 µm
  • Active Array
    5900 (H) x 2160 (V)
  • Imaging Area
    20.1 x 7.3 mm (photosensitive area)
  • Data Rate
    7.68 Gbps
  • Dynamic Range
    71.4 dB
  • Chroma
    Monochrome, Near-Infrared, RGB, Color
  • SNR
    39.3 dB
  • ADC Resolution
    12 Bit
  • Type
    Area Image Sensor
  • Supply Voltage
    3.3 V, 3.6 V (Analog), 1.8 to 3.3 V (IO), 1.2 V (Digital)
  • Power Consumption
    <1.2 W
  • Package Type
    LGA

Connections & Interface

  • Interface
    Sub-LVDS

Applications

  • Application
    Automation & Inspection, Intelligent Transport Systems

Physical Properties

  • Package
    163-Pins LGA
  • Dimensions
    32.7 x 17.9 mm
