GSENSE400 BSI

CMOS Image Sensor by Gpixel Microelectronics Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Gpixel Microelectronics Inc..

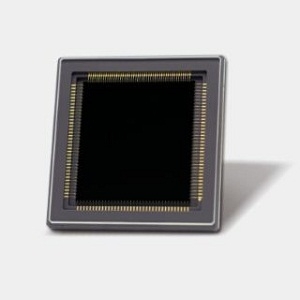

The GSENSE400BSI from Gpixel is a 4 Megapixel back-side illuminated scientific CMOS image sensor. Three sensor types are available with different anti-reflective coatings and epi-layer thickness,optimizing the peak QE at different wavelength for various applications: the peak QE is 77% at 275nm (UV), 86% at 420nm (VIS), and 95.0% at 560nm (TVISB). It is well-suited for a large variety of scientific applications, such as spectrometry, biometric, fluorescence, surveillance, industrial inspection, forensic, and astronomy applications.

Product Specifications

View similar products

Product Details

  • Part Number
    GSENSE400 BSI
  • Manufacturer
    Gpixel Microelectronics Inc.

General Parameters

  • Resolution
    2048 (H) x 2048 (V)
  • Mega Pixels
    4 MP
  • Shutter Type
    Rolling shutter
  • Frame Rate
    24 to 48 fps
  • Pixel
    4 MP
  • Pixel Size
    11 um
  • Active Array
    22.5 mm(H) x 22.5 mm(V)
  • Data Rate
    2.4 Gbit/s @ 25 MHz
  • Sensitivity
    3.2 x 108e-/((W/m2)·s) @ 650nm
  • Dynamic Range
    96 dB
  • SNR
    Grater than 50 dB
  • ADC Resolution
    12 bit
  • Clock Frequency
    20 to 30 MHz
  • Supply Voltage
    1.8 to 3.3 V
  • Power Consumption
    Less than 600 mW
  • Package Type
    PGA, Ceramic
  • Note
    Dark noise:- 1.3 e-, Dark current:- 0.4 e-/s/pix @ -20°C

Applications

  • Application
    Scientific

Physical Properties

  • Package
    115-pins PGA

Temperature

  • Operating Temperature
    -55 to 80 Degree C
