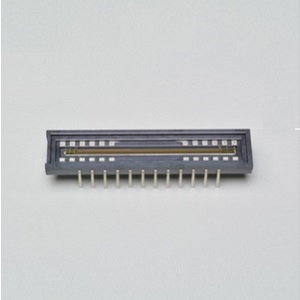

S11639N-02

CMOS Image Sensor by Hamamatsu Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The S11639N-02 from Hamamatsu Photonics is a CMOS Image Sensor with Data Rate 10 MHz, Sensitivity 1300 V/(lx·s), Dynamic Range 5000 to 10000 times, Clock Frequency 200 kHz to 10 MHz, Supply Voltage 4.75 to 5.25 V. More details for S11639N-02 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S11639N-02
  • Manufacturer
    Hamamatsu Photonics
  • Description
    140 to 1000 nm CMOS image sensor with LCP Package

General Parameters

  • Resolution
    1 (H) x 2048 (V)
  • Shutter Type
    Electronic Shutter
  • Pixel Size
    14 x 200 µm
  • Imaging Area
    28.672 mm (Length)
  • Data Rate
    10 MHz
  • Sensitivity
    1300 V/(lx·s)
  • Dynamic Range
    5000 to 10000 times
  • Chroma
    Ultraviolet
  • Type
    Linear Image Sensor
  • Clock Frequency
    200 kHz to 10 MHz
  • Supply Voltage
    4.75 to 5.25 V
  • Package Type
    LCP
  • Note
    Spectral response range: 140 to 1000 nm, Current consumption: 20 to 50 mA

Applications

  • Application
    Spectrometers

Physical Properties

  • Package
    LCP

Temperature

  • Operating Temperature
    -40 to 65 Degree C
  • Storage Temperature
    -40 to 65 Degree C
