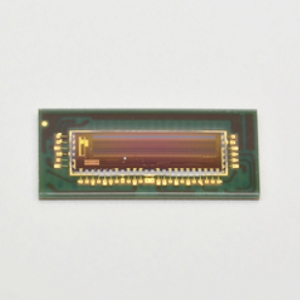

S15611-10

CMOS Image Sensor by Hamamatsu Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The S15611-10 from Hamamatsu Photonics is a CMOS Image Sensor with Data Rate 40 MHz, Sensitivity 980 V/(lx·s), 2000 k DN/(lx·s), Dynamic Range 2700 times, Clock Frequency 5 to 40 MHz, Supply Voltage 3.15 to 3.6 V. More details for S15611-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S15611-10
  • Manufacturer
    Hamamatsu Photonics
  • Description
    400 to 1000 nm CMOS Image Sensor with COB Package

General Parameters

  • Resolution
    1 (H) x 1024 (V)
  • Shutter Type
    Electronic Shutter
  • Pixel Size
    7 x 200 µm
  • Imaging Area
    7.168 mm (Length)
  • Line Rate
    34 kHz
  • Data Rate
    40 MHz
  • Sensitivity
    980 V/(lx·s), 2000 k DN/(lx·s)
  • Dynamic Range
    2700 times
  • ADC Resolution
    12 Bit
  • Type
    Linear Image Sensor
  • Clock Frequency
    5 to 40 MHz
  • Supply Voltage
    3.15 to 3.6 V
  • Package Type
    COB
  • Note
    Spectral response range: 400 to 1000 nm, Current consumption: 120 to 150 mA

Connections & Interface

  • Interface
    SPI

Applications

  • Application
    Encoders, Position Detection, Machine Vision

Physical Properties

  • Package
    Glass epoxy COB (chip on board)

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
