OH0TA

CMOS Image Sensor by OmniVision Technologies

Note: Your Quotation Request will be directed to OmniVision Technologies.

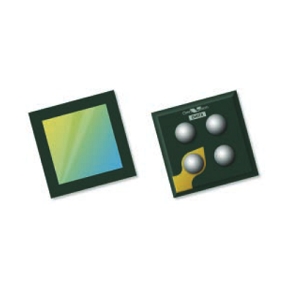

The OH0TA from OmniVision Technologies is a 160K CMOS Image Sensor that improves visualization of tissues by providing images with fine details during medical procedures such as neuro, ophthalmic, ENT, cardiac, spinal, urology, gynecology, arthroscopy, dentistry, veterinary diagnosis, and surgery. It is based on OmniVision’s PureCel Plus-S stacked die technology that quadruples the RGB image resolution to 400 x 400 and reduces the power consumption by 20 %. The pseudo-global shutter sensor has a frame rate of 30 fps, a pixel size of 1 µm2, and an optical size of 1/31 inches. It provides high color fidelity and has a low-light sensitivity of 3600 mV/lux-sec with a high signal-to-image ratio of 37.5 dB.

The image sensor features a 15.5° chief ray angle which enables a high field-of-view and short-focus distances. It requires a DC supply of 3.3 V and can be controlled via an SPI interface. The image sensor can also interface with OmniVision’s OV426 analog-to-digital conversion bridge chip for backward compatibility and is autoclavable for reusable endoscope sterilization. It is available in a package that measures 550 x 550 μm.

Product Specifications View similar products

Product Details

  • Part Number
    OH0TA
  • Manufacturer
    OmniVision Technologies
  • Description
    160K CMOS Image Sensor for Medical Applications

General Parameters

  • Resolution
    400 (H) x 400 (V)
  • Mega Pixels
    160 Kpixel
  • Supply Voltage
    3.3 V
  • Optical Format
    1/31 Inches
  • Package Type
    CSP
  • Chroma
    RGB, Color, Bayer
  • Shutter Type
    Global Shutter, Rolling Shutter
  • Frame Rate
    30 Frames/sec
  • Pixel Size
    1.008 µm x 1.008 µm
  • Pixel
    160 Kpixel
  • Active Array
    400(H) x 400(V)
  • Imaging Area
    411.264 µm x 411.264 µm
  • Type
    Analog Sensor
  • Sensor Technology
    PureCel®Plus-S
  • Note
    lens chief ray angle: supports lens up to 15° CRA

Connections & Interface

  • Interface
    SPI, Analog

Applications

  • Application
    Medical Endoscopes, Medical and Dental Equipment, Catheters, Robotic Surgery, Guidewires

Physical Properties

  • Package
    4-pin CSP
  • Dimensions
    550 µm x 550 µm

Temperature

  • Operating Temperature
    -20 to 70 Degree C
  • Storage Temperature
    0 to 50 Degree C
